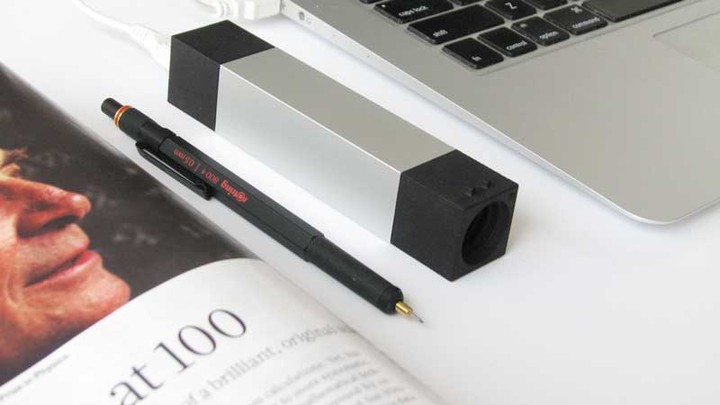

Myspectral Lumini T USB handheld spectrometer

Lumini T Spectrometric Camera

`Now available from stock!`

USB Spectrometric camera. Ultrafast. Rugged. Multiplatform software, which will remain always free. Main applications are in light monitoring, chemical kinetics spectrometry or laser measurement. Spectrometer, radiometer, colorimeter fully programmable.

Lumini T can be operated from a PC, laptop, Raspberry Pi or other portable rigs.

The software is running in a web browser window, running on:

Windows 10
Linux (Debian 6 or newer, or Ubuntu 18 or newer are recommended)
Raspberry Pi, Raspian or Debian are recommended

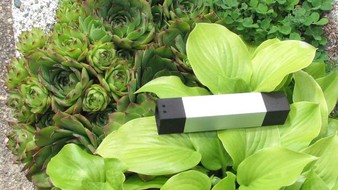

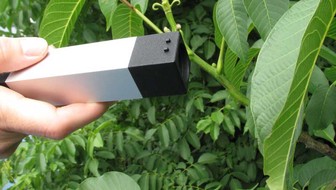

Case study: a datalogger for outdoor measurements of light spectra

We have had the chance to collaborate in a programming / dancing workshop to create a fully portable and automated datalogger with automatic exposure for outdoor and indoor measurements.

As a result, video shows the overlay of realtime spectrum from trees, walls and vegetation on top of the elegant dance moves of a professional contemporary dancer. Improptu, no preparation.

The technical part took several hours. The video work and processing was longer than the actual technical work.

Description

Technical Specifications	Lumini T, handheld USB spectrometer camera
Measurement Capability	Irradiance, (PAR), (NDVI), (RGB), CMYK, X,Y* Color Temperature (CCT CIE 17.4-1987), Color Rendering Index CRI, CQS, CIE1931, CIE1976, C78.377-2008, IEC-SDCM* Spectrum Diagram λp, λD
Wavelength Range	340~890 nm
Optical Resolution	<8nm
Wavelength Accuracy	0.5nm
Integration Time	0.12ms~10s
Built-in light sources	None, (*Up to three light sources can be built in, certain combinations of lights not possible)
Power	USB cable powered, no internal battery
Data I/O	microSD card or USB2.0
Dimensions LxWxH (preliminary)	130 L x 25 W x 25 H mm
	*) minimum order quantities required for certain features, please contact us for your application
