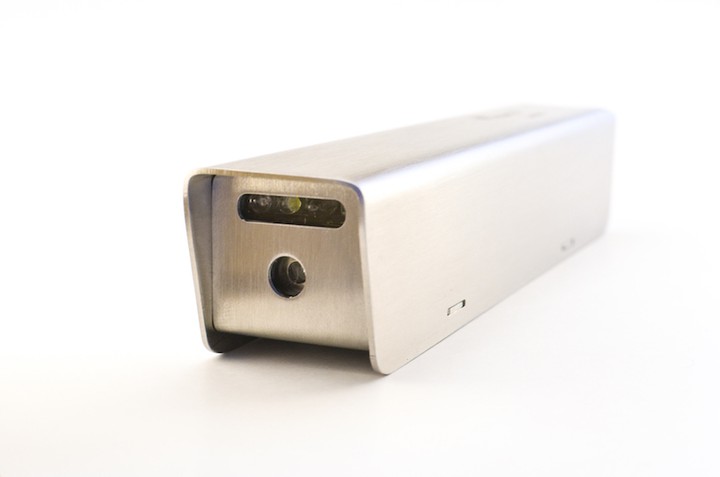

Myspectral Lumini One handheld spectrometer with light source
Existing customers remain supported in case of repairs and RMA cases.
The next generation of the product is available now on stock! Lumini T portable UV VIS NIR Raspberry Pi spectrometer
Lumini ONE Spectrometric Camera for UV VIS NIR applications
USB Spectrometric camera. Ultrafast. Rugged. Multiplatform software, which will remain always free. Main applications are in light monitoring, chemical kinetics spectrometry or laser measurement. Spectrometer, radiometer, colorimeter fully programmable.
Description
Measurement Capability: Irradiance, RGB, CMYK*, X*,Y* Color Temperature (CCT CIE 17.4-1987)*, Color Rendering Index CRI*, CQS*, CIE1931*, CIE1976*, C78.377-2008*, IEC-SDCM Spectrum Diagram* λp*, λD* Normalised Difference Vegetation Index – NDVI*
Wavelength Range: 330~890 nm
Optical Resolution: <8 nm
Wavelength Accuracy: <1 nm
Integration Time: <0.15ms~6s
Relative Intensity Level Resolution: 65536 by 16bit A/D converter
Interface with Smartphones: Bluetooth 4.0, iOS, Android compatible (minimum order quanitites apply)
Built-in light sources: 4 light sources from 340 to >1000 nm
Power: USB 2.0
Data I/O: USER GPIO, microSD card or USB2.0
Dimensions LxWxH: 185 L x 24 W x 22 H mm
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 20 × 10 × 4 cm |
